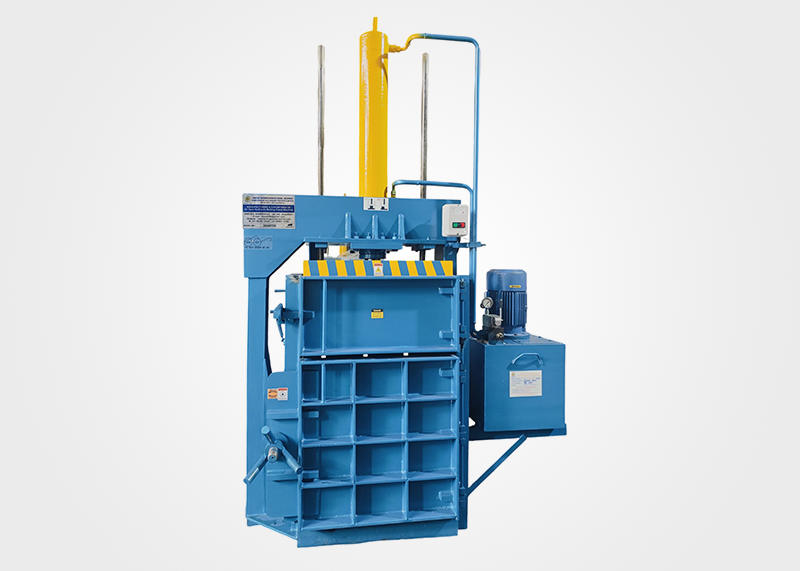

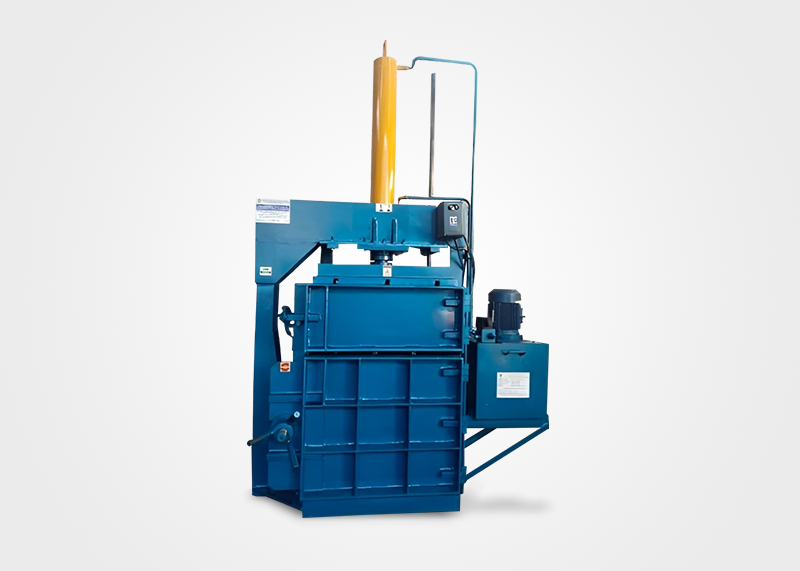

| Capacity | 25 Ton Pressure Single Chamber Single Cylinder Baler Machine |
| Bale Size | 30(L)x26(W) in Inch |
| Bale Weight | 100 to 120 Kg. |
| Chamber Size | 30(L)x26(W)x45(H) In Inch |
| No. of Cylinder | 1 Nos |
| No. of Tie | 3 Nos. |
| No. Of Door | 2 Nos. |
| Cylinder Size | 140(Bore)*160(Od)*90(Ram)*1000 (Stroke) mm |
| Bale Eject | Swing Plate. |
| Oil Tank Capacity | 80 Liters. |
| Production Rates | 10 To 15 Minuets |
| Hydraulic System | Gear Pump Systems. |
| Day light Gap | 45 Inch |
| Operation | Hand levers Operate Systems. |
| Electric Motor | 5 HP Motor 3Phase 1440 RPM 50Hz |
| Delivery Time | 25 Working Days. |
| Overall Dimension | 70 (L) x 50 (W) x 120(H) In Inch |
| Body Plate | 8mm,10mm,25mm |
| Usage/Application | Waste Paper , Corrugated Box, Cartoon Box , Plastic Waste |
